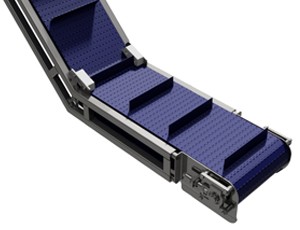

Incline Plastic Modular Belt Conveyor
mk Part Number: CIM-600
Request a Quote
Product Information for Incline Plastic Modular Belt Conveyor
The CIM-600 is a sanitary stainless steel conveyor, featuring a plastic modular belt. This conveyor is ideal for moving product between elevations, and features standard and custom configurations.
Conveyor Features:
- Drive Pulley Diameter: 5.1 in.
- Width: 6 to 48 in., in 2 in. increments
- Length: up to 60 ft.
- Load: Up to 400 lbs.
- Speed: Up to 150 fpm; Constant or Variable speed options
- Motors: Stainless steel motors and reducers
- Angle Options (incline/decline): 15°, 30°, 45°, and 60°
- Belting: All FDA approved, in a variety of finishes and colors
- Cleats: Up to 6 in. tall
Catalogs, Resources & Downloads for Incline Plastic Modular Belt Conveyor
Technical Specifications for Incline Plastic Modular Belt Conveyor
- Constructed out of 1-½ in. square tube 304 stainless steel
- Features a #4 finish on all surfaces
- Continuous non-pitted welded construction
- ½ to 1-in. standoffs, welded
- 3-A sanitary design guidelines
- All FDA approved belting
- Belt width is 3.25 in. less than the frame width
- Usable belt width is 5.25 in. less than the frame width
- Stainless steel bearings with FDA approved solid lubricant
- Positively driven
- Available in end drive configurations
- All tails are "tip up" style for easy belt cleaning
- All conveyor lengths are per customer requirements
- A large collection of accessories including side rails and stands
