LZR: Timing Belt Driven Actuators
Posted on

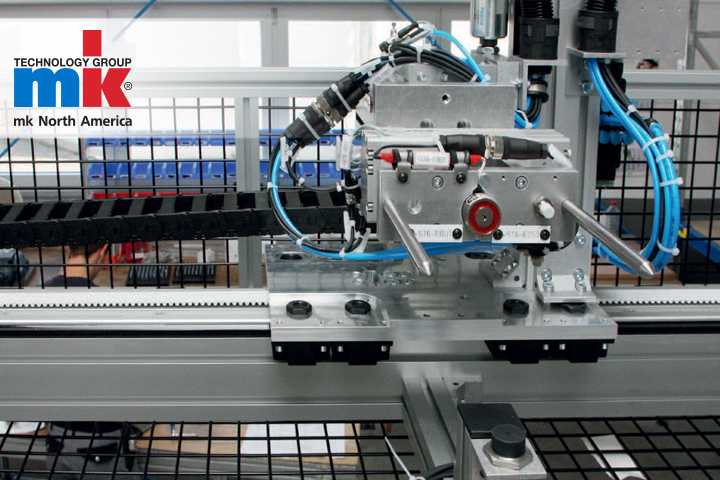

mk LZR linear modules offer high speed, high acceleration, and long travel distances combined with rigid construction characteristics. They are ideally suited as a single-axis product or as a component for multi-axis gantries.
Construction
The carriage is rigidly support by heavy-duty steel roller bearings, and the bearing wheels are pre-loaded via eccentric bushings to eliminate play in the system. A high-strength drive belt and pulley system provides fast and repeatable positioning of the carriage. The high-thrust drive belt is securely connected to the carriage by a unique clamping system. Special carriage lengths and linear units with multiple carriage are available for custom applications.
Specifications
Linear motion systems designed around these elements can effectively, efficiently and economically satisfy a wide range of application requirements.
- Quality steel roller bearings for high-load capabilities up to 2,645 lbs.
- Full compatibility with other mk products for easy integration
- Rugged construction for heavy duty applications
- Timing belt and pulley drive mechanism for fast, accurate positioning
- Offered in four different cross-section sizes
- 25 x 25 mm
- 50 x 50 mm
- 50 x 100 mm
- 100 x 100 mm
- Standard travel up to 10 meters
- Velocity up to 33 feet / second
- Positional repeatability ± 0.2 mm
Learn more about these linear positioning modules on their product page.
