Back in 2016, we looked at over under conveyor systems using mk belt and high-load conveyors. But times have changed, and new technologies have been developed. In this article, we’ll explore two of these newer conveyor types, learn their differences and similarities and see how they stack-up against more traditional over under conveyor models.

Over under conveyors feature, typically two, conveyors stacked on top of each other running in opposing directions. These conveyors usually have elevators, or vertical transfer units, on one or both ends. When carrying product directly on the conveyor, and that product needs to return back to the other end of the conveyor line, the over under conveyor systems previously discussed are absolutely the best solution.

But what about applications where the part is an irregular shape and needs to be carried pallet or puck? Then pallet-handling conveyors are exactly what you need. mk North America’s VersaMove line is specially designed for the workpiece pallet-handling conveyor sector. Within VersaMove there are several options for over under conveyor systems. However, all these systems require the use of vertical transfer units (VTUs). And while there is no arguing the importance of VTUs in industrial automation, there are other, more cost-effective, compact, and greener solutions available for over under conveyor systems.

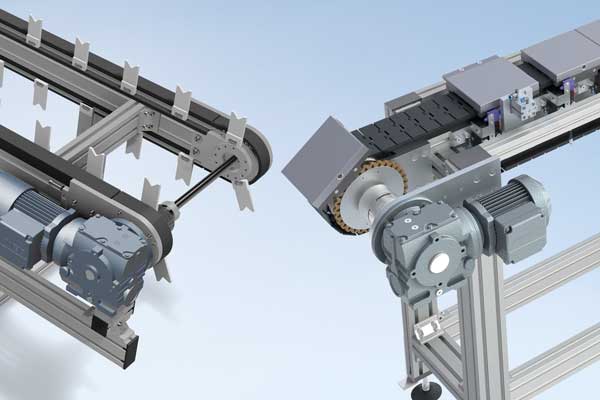

Two of these solutions available from mk are the TKU 2040 and the SPU 2040. Or in layman’s terms - a “Fixtured Indexing Attachment Chain Conveyor” and an “Over Under Recirculating Pallet Conveyor System.” Let’s break these units down to better understand what they are and where to use them.

 Fixtured Indexing Attachment Chain Conveyor or TKU 2040

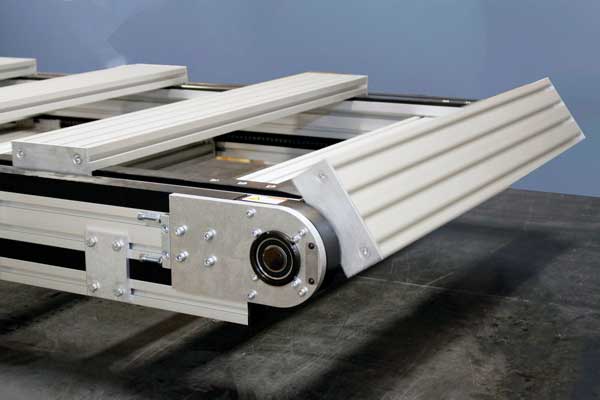

TKU 2040 with Profile Pallets

The TKU 2040 is the ideal conveyor for when a product is placed on a carrier at one end of the conveyor and removed from the carrier at the other end; without needing to allow for product accumulation. The carrier then returns along the underside of the conveyor and back to the load position. This conveyor can run continuously or be indexed (cycled) on demand. The Fixtured Indexing Attachment Chain Conveyor is a synchronous conveyor system, meaning the motion of individual pallets cannot be controlled; which isn’t a bad thing it’s just the opposite of asynchronous conveyor systems – which we’ll get into shortly.

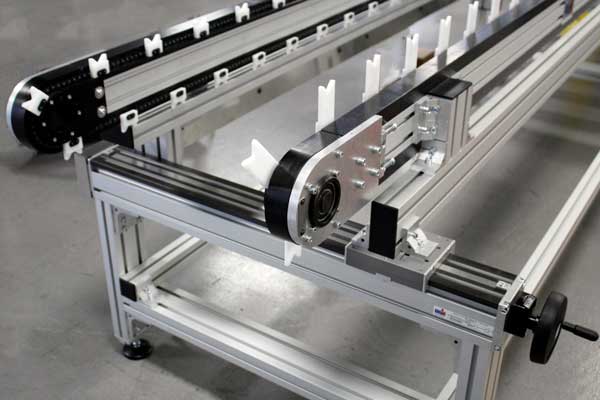

TKU 2040, Adjustable Width, with V-Blocks



The TKU 2040 can be outfitted with V-blocks for carrying cylindrical parts or with pallets for carrying nearly everything else. One of the unique and premiere features of this conveyor, when outfitted with the V-blocks, is this conveyor’s ability to be provided with adjustable width. This means a single conveyor can carry a wide variety of part sizes, and change over from one part to the next is simple and fast, thanks to the ingenious options for width adjustment from mk.

TKU 2040 Over Under Fixtured Indexing Attachment Chain Conveyor Features

  • Widths: 195 to 1,500 mm
  • Lengths: 1,000 to 8,000 mm
  • Loads: Up to 1,000 lbs.
  • Speeds: Up to 60 fpm
  • Repeatability: ± 1 mm

Over Under Recirculating Pallet Conveyor System or SPU 2040

The SPU 2040 is also the ideal conveyor system for when a product is placed on a carrier at one end of the conveyor and removed from the carrier at the other end; however, unlike the TKU 2040, this conveyor system allows for pallets to be individually stopped and located. That’s because this conveyor model is an asynchronous conveyor system.

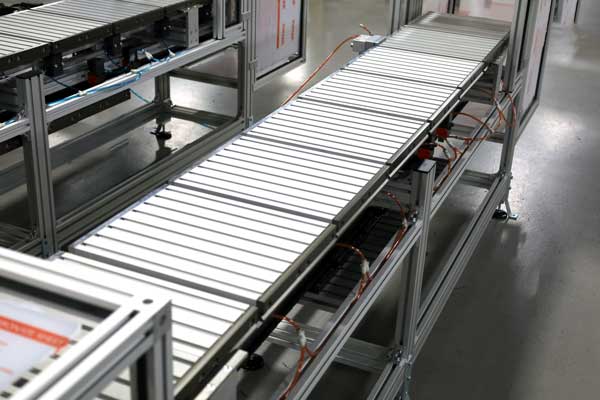

SPU 2040



The SPU 2040 comes in three different styles to accommodate a single row of smaller pallets, a single row of wider pallets, or two rows of smaller pallets. Because the pallets on the SPU 2040 are free to be stopped; they can easily be accumulated

See the SPU 2040 in action.

SPU 2040 Over Under Recirculating Pallet Conveyor System Features

  • Pallet Widths: 160 to 2,000 mm
  • Lengths: 2,000 to 10,000 mm
  • Loads: Up to 1,300 lbs.
  • Speeds: Up to 50 fpm
  • Positional accuracy: ±0.2 mm

More Cost-Effective, Compact and Greener

So, what makes these over under conveyors more cost-effective, compact, and greener? Their ability to return pallets without the use of VTUs. Removing the VTUs from an over under system reduces the total number of components – which brings costs down as well as reduces the footprint. For example, a pallet that is 400 mm long would require a VTU of approximately 1,000 mm with two of these on the system that’s a space savings of 2,000 mm (6.6-ft). These solutions are greener because they consume less energy – these over under systems only require one motor, whereas a standard over under system would require three or four or more motors. And once again, the system is more cost-effective because there are far fewer motors which also translates to less complex controls and less peripheral equipment.

To learn more about these unique and versatile over under conveyor systems or to get started on your next over under conveyor project fill out the form below and we’ll get right back to you.
