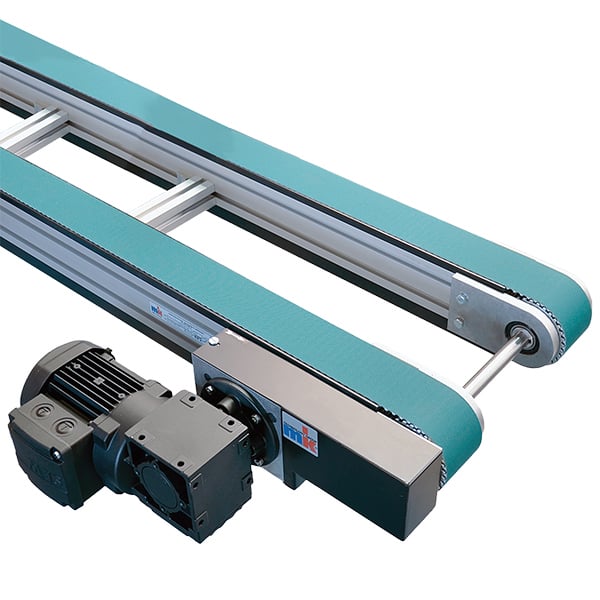

Heavy Duty Timing Belt Conveyor
mk Part Number: ZRF-P 2012
Request a Quote
Product Information for Heavy Duty Timing Belt Conveyor
The attachment timing belt conveyor ZRF-P 2012 is designed especially for product indexing applications which require a heavy load. This conveyor is part of the mk VersaMove Ultra family of conveyors. This is a precision move conveyor that is also capable to accumulating pallets.
Heavy Duty Timing Belt Conveyor Features:
- Frame: 80 mm tall, dual t-slot aluminum extrusion
- Pulley: AT10 pitch, 32 tooth
- Width: 80 mm and 120 mm
- Length: 500 mm to 10,000 mm
- Load: Up to 1,200 lbs./pallet
- Speed: Up to 80 fpm; Constant or Variable speed options
- Voltage: All standard US, Mexico and Canadian voltages
- Belting: AT10 Timing Belt; available with M4 inserts in the belt or cleats ultrasonically welded to the top surface, also available are a number of belt coatings including nylon and grip top
- Accessories: Compatible with all mk side rails and supports
Catalogs, Resources & Downloads for Heavy Duty Timing Belt Conveyor
Technical Specifications for Heavy Duty Timing Belt Conveyor
- Constructed using our mk 2040.02 series structural profile
- 80 mm tall anodized aluminum frame
- Dual t-slots along the length of the frame, each side
- UHMW-PE slider bed, 7.5 mm thick – guided for added belt tracking
- Available in end drive model
- All conveyor lengths are per your requirements – no preset lengths to choose from
- Single lane and multi-lane set ups
- Available in 80 mm and 120 mm standard lane widths
- Belts are 60 mm and 100 mm wide (respectively)
- Lengths from 500 mm to 10,000 mm
- Maintenance free dual-sealed ball bearings
- Belt pitch is AT10
- Available with 2 types of belting
- Standard timing belt with various coatings (rough top, nylon, etc) - Nylon wrapped for VersaMove Ultra
- Standard timing belt with ultrasonically welded urethane attachments
Product Options for Heavy Duty Timing Belt Conveyor
Heavy Duty Timing Belt Conveyor Options Include:
- Covers
- Encoders
- Specialty belt covers
- Product escapements
- Side tables and workstations
- Drip pan and product catch pans
- Custom motor and control options
Heavy Duty Timing Belt Conveyor Engineered Solution Options Include:
- Custom fixtures
