Flat Belt Conveyor

mk Part Number: CFB-600

Request a Quote

We're here to assist:
Call us at (860) 769-5500

Product Information for Flat Belt Conveyor

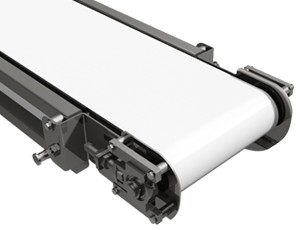

The CFB-600 is a sanitary stainless steel conveyor. It is ideal for transporting fish, meat, poultry and dairy products, but can be used in any application with rigorous cleaning protocols.

Conveyor Features:

  • Drive Pulley Diameter: 4 in.
  • Width: 4 to 36 in., in 2 in. increments
  • Length: up to 60 ft.
  • Load: Up to 300 lbs.
  • Speed: Up to 250 fpm; Constant or Variable speed options
  • Motors: Stainless steel motors and reducers
  • Belting: All FDA approved, in a variety of finishes and colors

Catalogs, Resources & Downloads for Flat Belt Conveyor

Technical Specifications for Flat Belt Conveyor

  • Constructed out of 1-½ in. square tube 304 stainless steel
    • Features a #4 finish on all surfaces
    • Continuous non-pitted welded construction
    • ½ to 1-in. standoffs, welded
  • 3-A sanitary design guidelines
  • All FDA approved belting
  • Belt width is 4 in. less than the frame width
  • Stainless steel bearings with FDA approved solid lubricant
  • Crowned pulleys for easy belt tracking
    • Optional v-guided belts
    • NOTE: v-guides are standard in lengths over 30 ft.
  • Available in end drive configurations
  • All tails are "tip up" style for easy belt cleaning
  • Optional rolling nosebar idler
  • All conveyor lengths are per customer requirements
  • A large collection of accessories including side rails and stands
