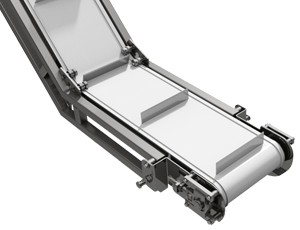

Incline Belt Conveyor

mk Part Number: CIC-600

Request a Quote

We're here to assist:
Call us at (860) 769-5500

Product Information for Incline Belt Conveyor

The CIC-600 is a stainless steel conveyor, designed for high sanitary conditions. It is ideal for transporting goods up inclines and features various "goose-neck" configurations.

Conveyor Features:

  • Drive Pulley Diameter: 4 in.
  • Width: 6 to 24 in., in 2 in. increments
  • Length: up to 48 ft.
  • Load: Up to 400 lbs.
  • Speed: Up to 150 fpm; Constant or Variable speed options
  • Motors: Stainless steel motors and reducers
  • Belting: All FDA approved, in a variety of finishes and colors
  • Cleats: 0.25 to 3 in. tall
  • Angle Options (incline/decline): 15°, 30°, 45°, and 60°

Catalogs, Resources & Downloads for Incline Belt Conveyor

Technical Specifications for Incline Belt Conveyor

  • Constructed out of 1-½ in. square tube 304 stainless steel
    • Features a #4 finish on all surfaces
    • Continuous non-pitted welded construction
    • ½ to 1-in. standoffs, welded
  • 3-A sanitary design guidelines
  • All FDA approved belting
  • Belt width is 4 in. less than the frame width
    • Usable belt width is 8 in. less than the frame width
  • Stainless steel bearings with FDA approved solid lubricant
  • Crowned pulleys for easy belt tracking
  • Available in end drive configurations
  • All tails are "tip up" style for easy belt cleaning
  • All conveyor lengths are per customer requirements
  • A large collection of accessories including side rails and stands
