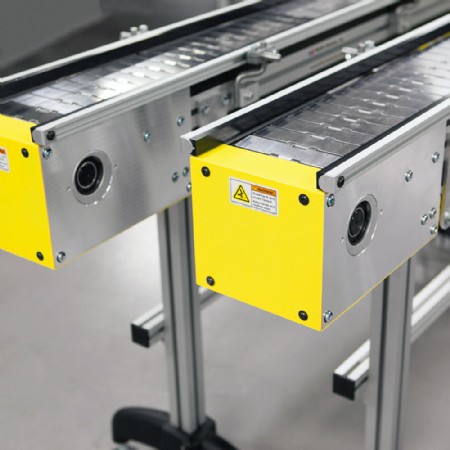

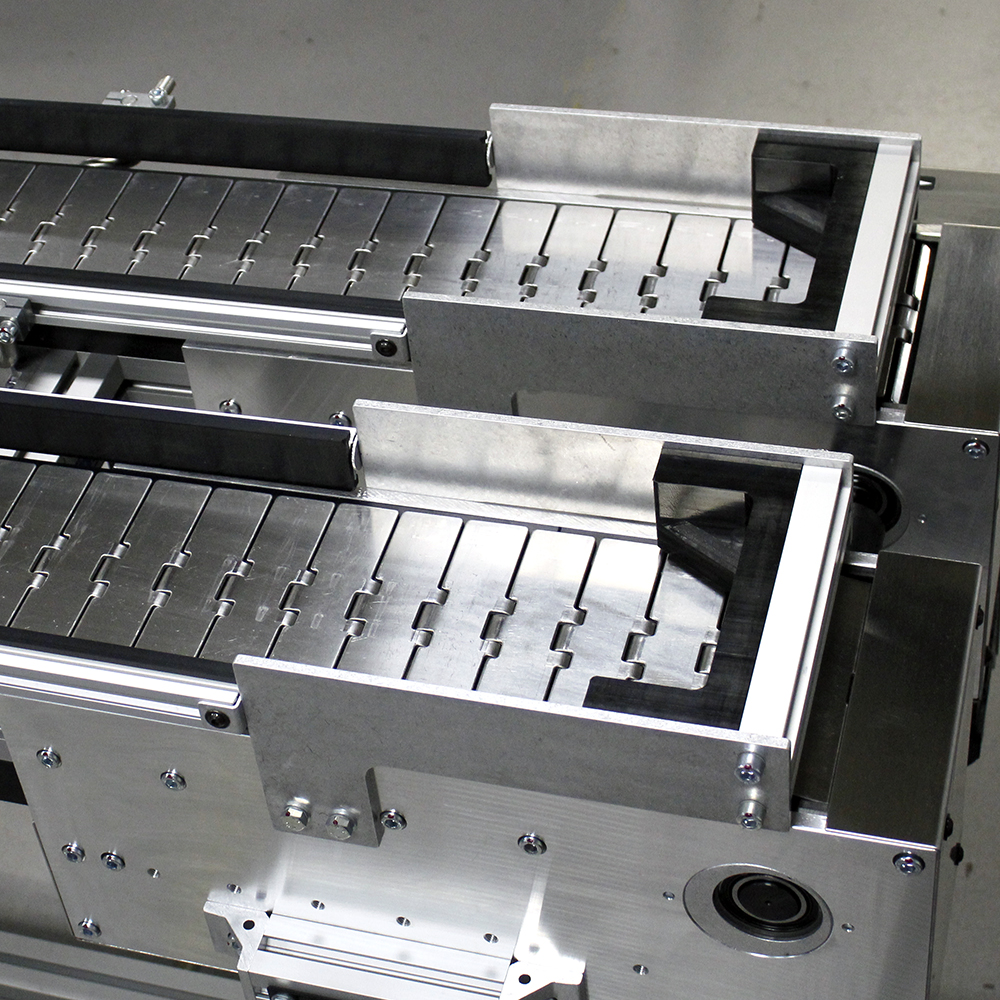

Flat Top Chain Conveyor
mk Part Number: SBF-P 2000
Request a Quote:
Product Information
The SBF-P 2000 is a truly industrial table top chain conveyor. It is designed to operate in the most taxing of environments and to carry a wide variety of products. This slat chain conveyor can be configured as a single straight run, with a variety of curves and in multi-lane set-ups.
Conveyor Features:
- Width: 3.25", 4.5", 6", 7.5", 10" and 12" chain width
- Chain: 1.5" pitch chain, available in various plastic and steel materials
- Curves: 90º and 180º curves standard
- Length: 1,000 mm to 10,000 mm
- Load: Up to 900 lbs.
- Speed: Up to 200 fpm; Constant or Variable speed options
- Voltage: All standard US, Mexico and Canadian voltages
- Accessories: Compatible with all mk side rails and support
Catalogs, Resources & Downloads
Technical Specifications
- Constructed using our mk structural profile
- T-slots along the length of the frame, each side
- T-slots along the length of the conveyor for ease of mounting stands, side rails, and custom accessories
- Maximum product weight
- Horizontal conveying: 90 lbs.
- UHMW-PE slider bed
- Available in end drive configurations
- Single lane and multi-lane set ups
- Dual sealed bearings for low maintenance design
- Positively driven via sprocket
- Maintenance free dual-sealed ball bearings
- Compatible with all mk 50 system profiles and components and most mk 40 system profiles and components
Product Options
Conveyor Options Include:
- Covers
- Encoders
- Lane dividers
- Specialty chains
- Product escapements
- Infeed and discharge chutes
- Side tables and workstations
- Drip pan and product catch pans
- Custom motor and control options
Engineered Solution Options Include:
- Continuous top loop chain
- Attachment chain and fixturing
