Flexible Chain Conveyor

mk Part Number: VersaFlex A06
Operating Manual

Request a Quote:

We're here to assist:
Call us at (860) 769-5500

Product Information

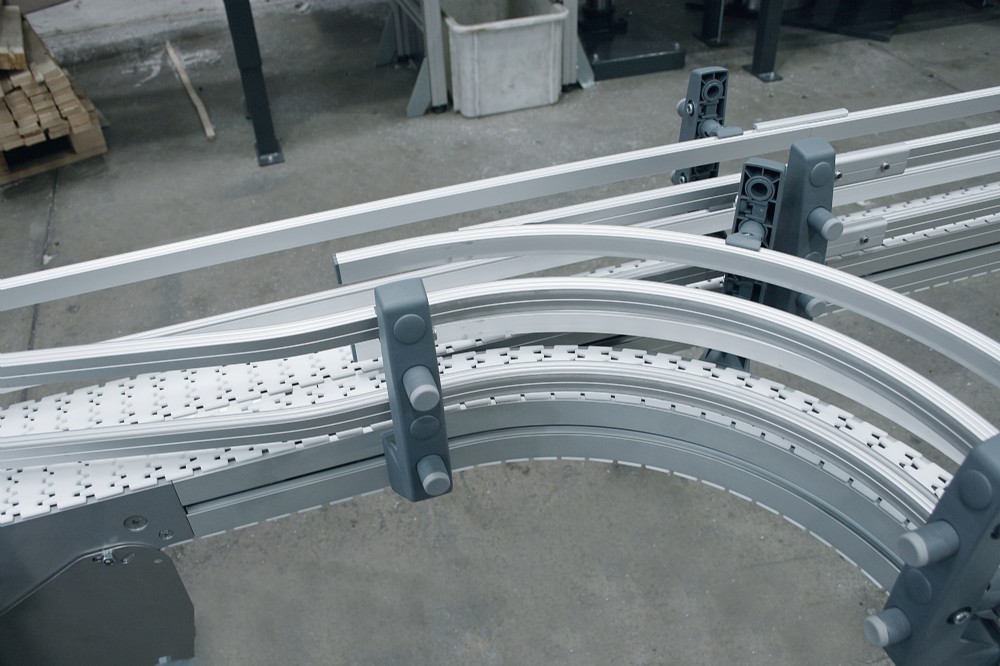

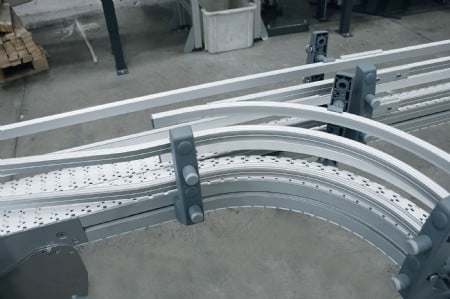

The VersaFlex A06 is a versatile flexible chain conveyor. Capable of conveying products horizontally and vertically. This conveyor allows for the use of multiple curves and can be configured in an alpine conveyor configuration.

Conveyor Features:

  • Frame Width: 65 mm
  • Chain Width: 63 mm
  • Product Width: 15-140 mm
  • Length: up to 40 m
  • Curves: minimum radius of 150 mm
  • Load: Up to 330 lbs.
  • Speed: Up to 165 fpm
    • Constant or Variable speed options
  • Voltage: All standard US, Mexico and Canadian voltages

Technical Specifications

  • Anodized aluminum frame
  • Features a double t-slot, see image below
  • Frame width is 65 mm
    • Chain width is 63 mm
  • Frame height is 73 mm
  • Chain pitch is 25.4 mm
  • Maximum product weight
    • Horizontal conveying: 22 lbs.
    • Vertical conveying: 4.4 lbs

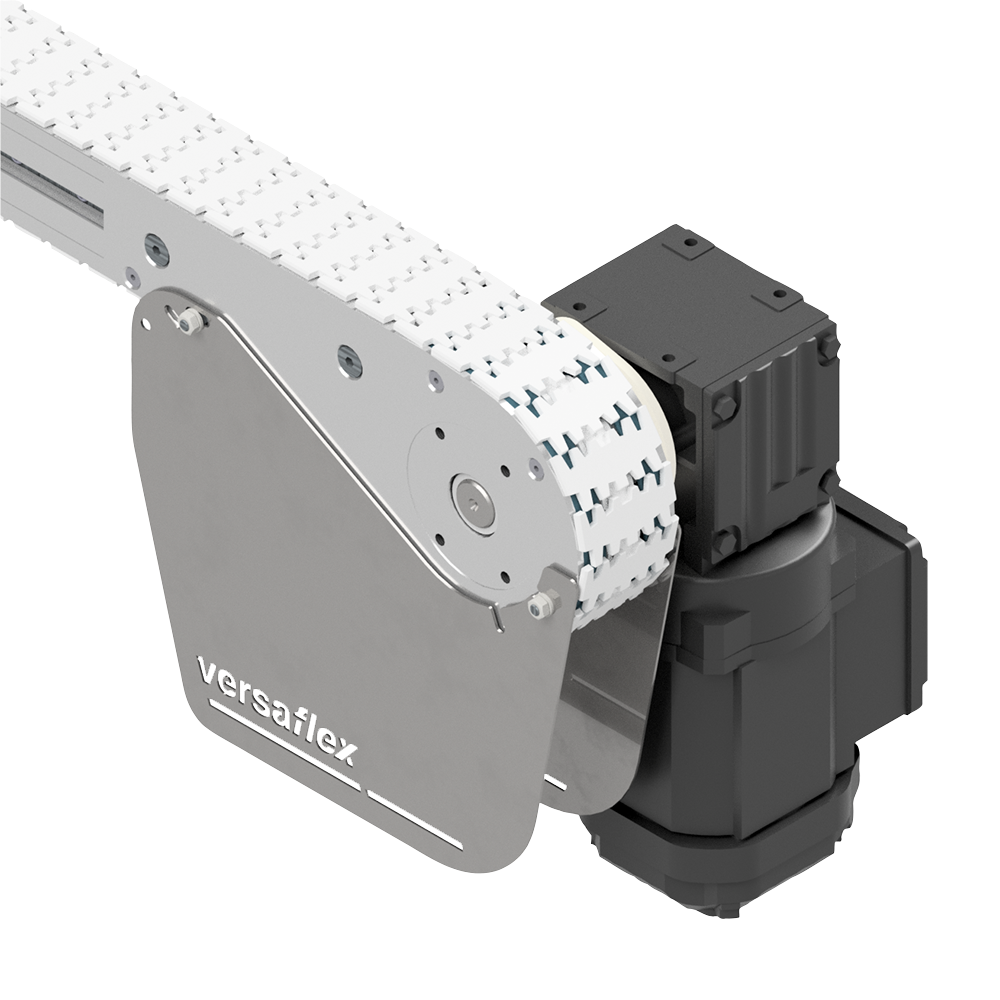

  • Features a direct drive for a economical and space saving design
  • Minimum curve radius is 150 mm
Double t-slot detail
Double t-slot detail - located on both sides of the conveyor frame.

Product Options

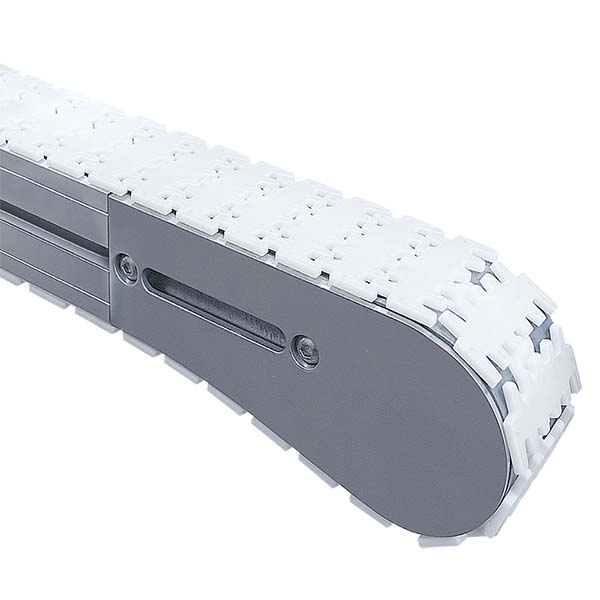

  • Small product end transfers
  • Side transfers
  • Stand options includes
    • Tri-pod base with leveling feet
    • Pedestal base design
  • Side Rail options includes
    • Fixed side rails, removable
    • Adjustable side rails, removable
    • Side rails with product hold down rails
  • A wide variety of chain options
    Flexible chain options for conveyors

Configurations

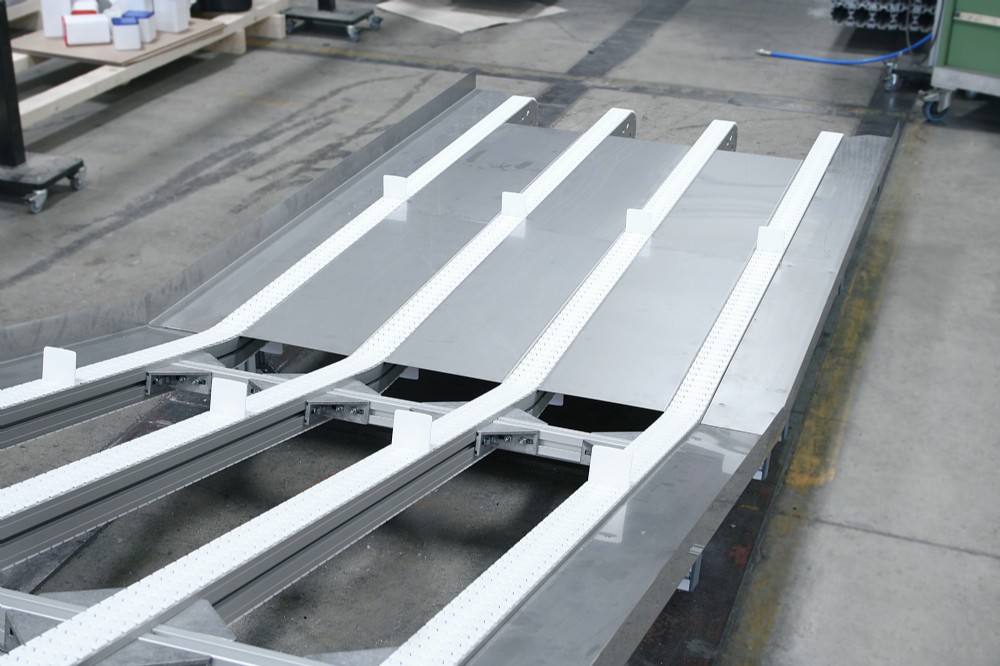

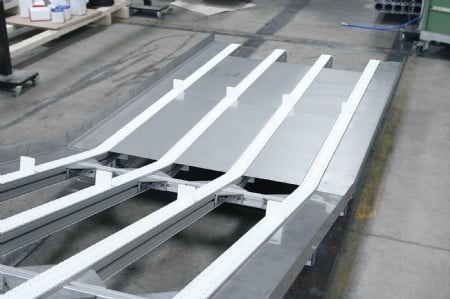

Six side flexing chain configurations
