VersaFlex A08

Flexible Chain Conveyor for Pallet Conveying

Generate, customize and download a CAD 3D model:
Operating Manual

Request a Quote:

We're here to assist:
Call us at (860) 769-5500

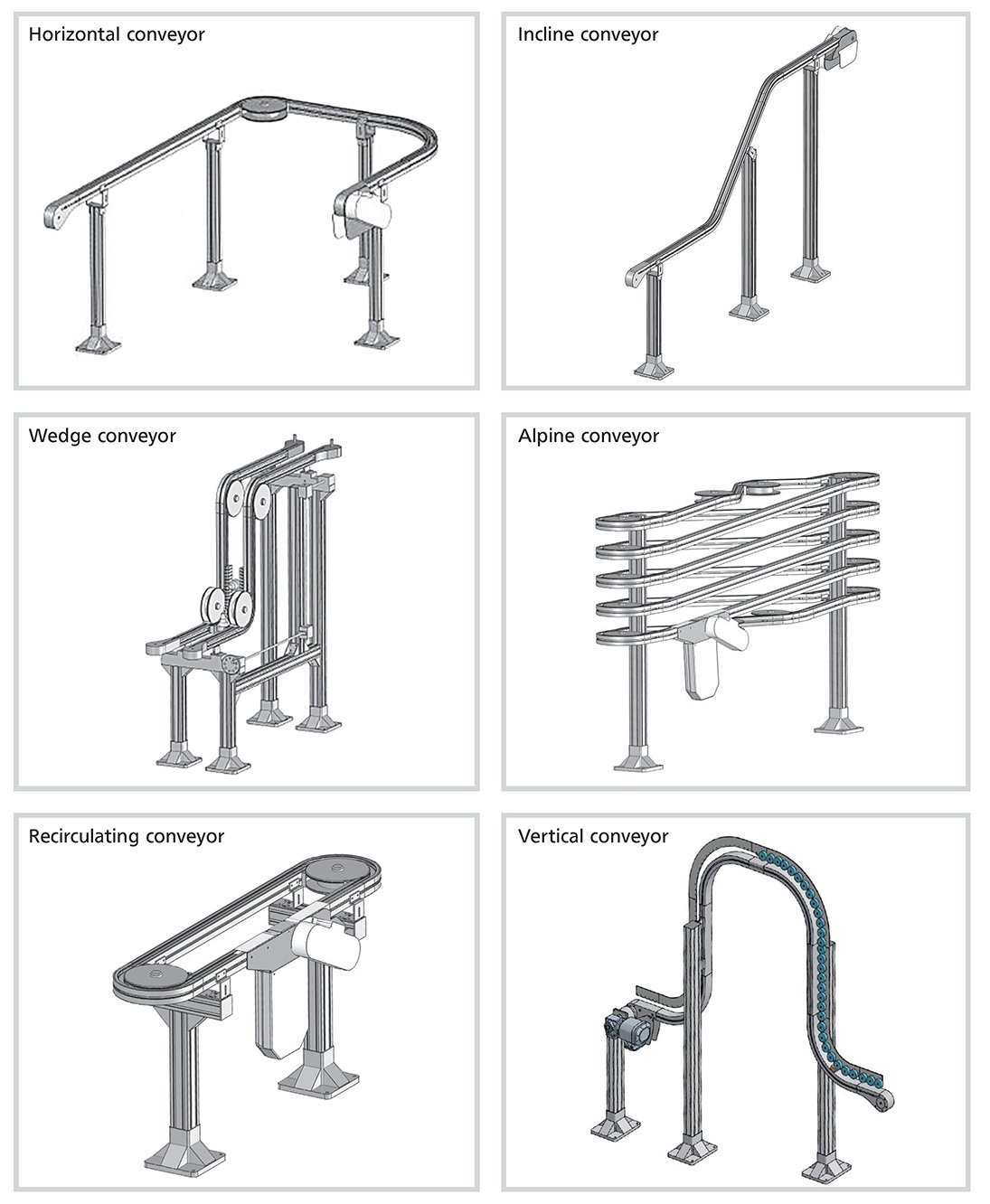

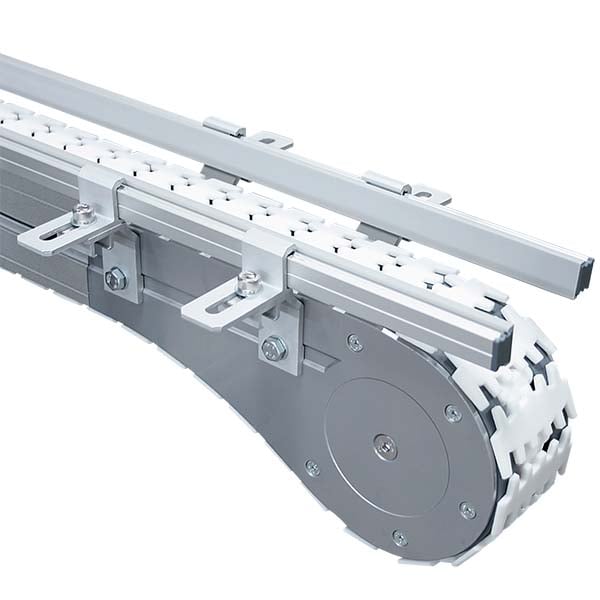

The VersaFlex A08 is flexible table top chain conveyor is ideal for many products. This conveyor allows for a variety of curves as well as incline and vertical conveying.

The A08 is also capable of pallet handling. It is designed to use a standard pallet that is 150 mm wide, length may vary. This pallet is capable of carrying up to 22 lbs. The VersaFlex pallet handling system has a positional accuracy of ± 0.1 mm; when used with mk pallets and locating devices. Side transfers, corners and gates allow for the pallet to effortlessly travel around the facility and between various processes and stations.

Conveyor Features:

  • Frame Width: 85 mm
  • Chain Width: 83 mm
  • Product Width: 20-200 mm
    • Pallet Width: 150 mm
  • Length: up to 30 m
  • Curves: minimum radius of 160 mm
  • Load: Up to 440 lbs.
  • Speed: Up to 165 fpm; Constant or Variable speed options
  • Voltage: All standard US, Mexico and Canadian voltages
