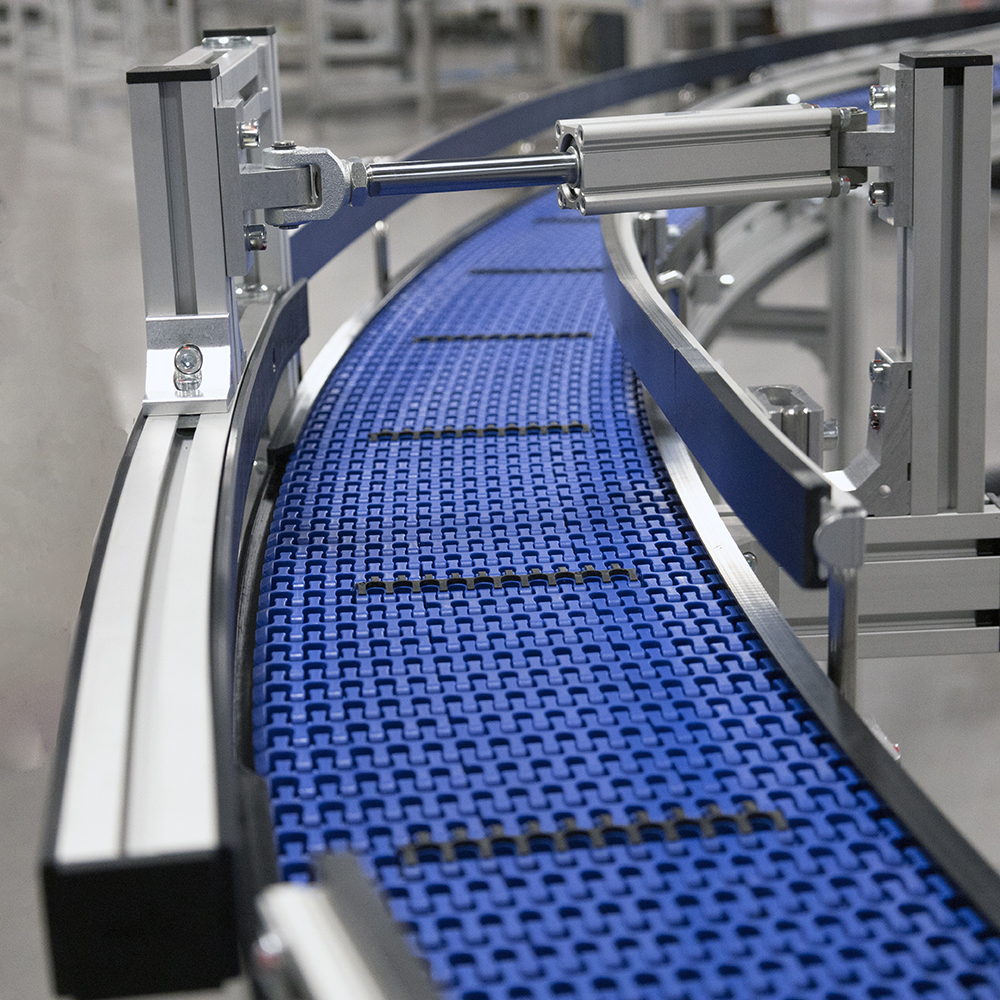

Curved Plastic Modular Belt Conveyor

mk Part Number: KMF-P 2040
Operating Manual

Request a Quote:

We're here to assist:
Call us at (860) 769-5500

Product Information

mk North America’s KMF-P 2040 curved modular plastic belt conveyors comes in twelve different widths (164 mm to 1,005 mm) and features two different curves, 90° and 45° (with 180° possible) with three standard layout options that can be modified to meet your needs. The KMF-P 2040 also allows for minor elevation changes as well.

The plastic belt is built in interlocking segments it is possible to replace a damaged portion without replacing the entire conveyor belt, thus resulting in cost savings over the life of the conveyor.

The KMF-P 2040 features a usable width of just 30 mm less the outside frame width, makes mk's curved modular belt conveyor one of the most streamlined in the marketplace.

Conveyor Features:

  • Frame: 80 mm deep aluminum profile frame
  • Width: 164 mm up to 1,005 mm
  • Length: 475 mm to 10,000 mm
  • Load: Up to 330 lbs.
  • Speed: Up to 100 fpm
    • Constant or Variable speed
  • Voltage: All standard US, Mexico and Canadian voltages
  • Belting: Plastic modular belt, flat top, flush grid, and textured
  • Accessories: Compatible with all mk side rails and supports

Technical Specifications

  • Constructed using our mk 2040 series structural profile
    • 80 mm tall anodized aluminum frame
    • Dual t-slots along the length of the frame, per side
  • Standard 45° and 90° curves available
  • Three different end drive options
  • Three different layouts available
  • UHMW-PE slider bed
  • UHMW-PE underside belt support
  • Maintenance-free dual-sealed ball bearings
  • Positively driven via a sprocketed drive roll
  • Modular belting benefits
    • Quick and easy change of damaged belt sections without the need to replace the entire belt
    • No need to disassemble the conveyor or remove it from its stands
    • Allows for the ability to have the conveyor width greater than the length
  • Compatible with all mk 40 system profiles and components and most mk 50 system profiles and components
  • Large selection of conveyor accessories

Product Options

  • Covers
  • Encoders
  • Lane dividers
  • Product escapements
  • Specialty belt materials
  • Infeed and discharge chutes
  • Side tables and workstations
  • Drip pan and product catch pans
  • Custom motor and control options
  • Custom curve angles and radii are available
