Timing Belt Conveyor System

mk Part Number: ZRF-P 2010
Operating Manual

Request a Quote

We're here to assist:
Call us at (860) 769-5500

Product Information for Timing Belt Conveyor System

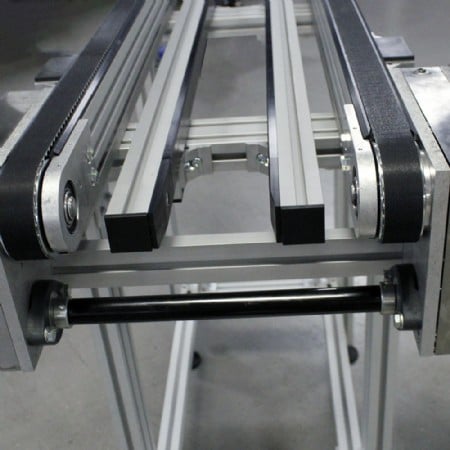

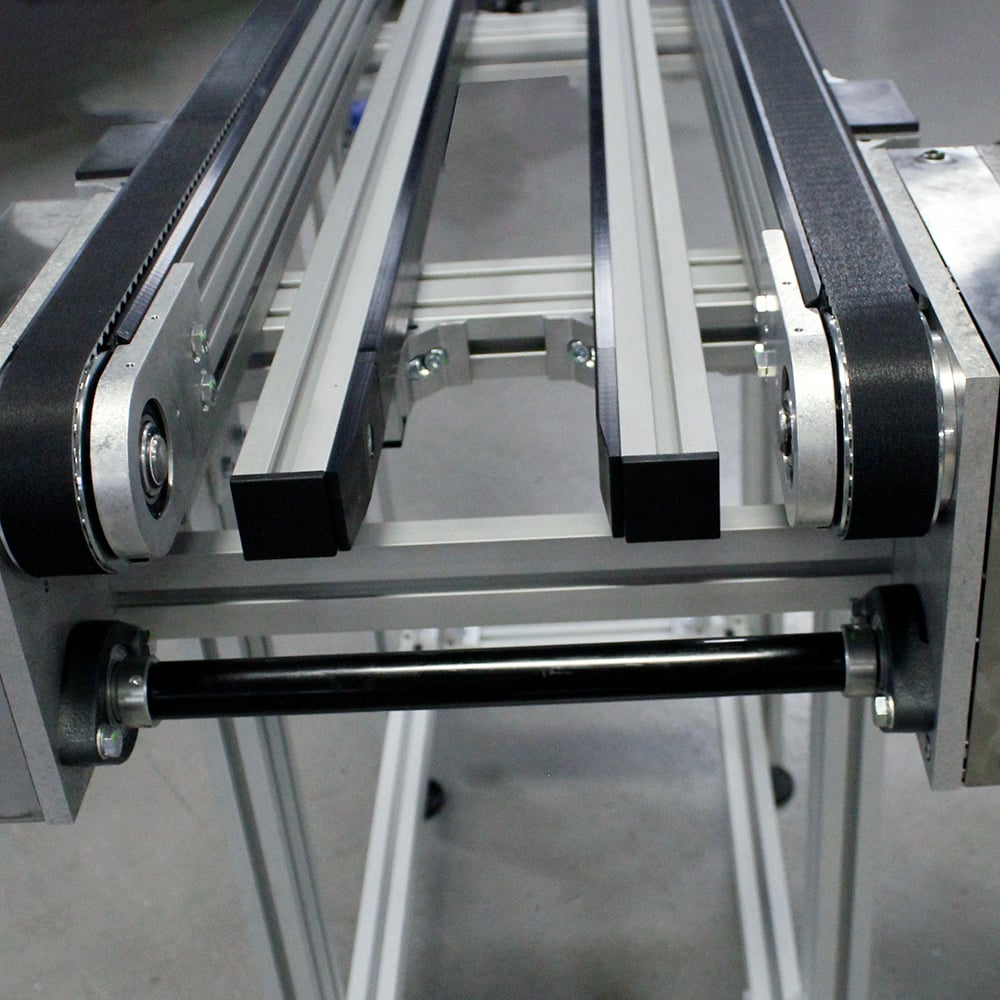

Built using our robust 50 x 100 mm profile, mk timing belt conveyor ZRF-P 2010 is ideal for indexing applications. Various belt backing materials, and attachments are available; thus expanding the application possibilities for this conveyor system.

Timing Belt Conveyor Features:

  • Frame: 100 mm deep aluminum profile
  • Pulley: T10 pitch, 28 tooth
  • Width: Each lane is 50 mm wide, outside frame width is nearly unlimited, single or multiple lanes
  • Length: 500 mm to 10,000 mm
  • Load: Up 250 lbs. per pallet and 800 lbs. per drive
  • Speed: Up to 200 fpm (speeds up to 80 fpm are preferred for VersaMove); Constant or Variable speed options
  • Voltage: All standard US, Mexico and Canadian voltages
  • Belting: T10 Timing Belt; available in standard urethane or with belt coatings including nylon and grip top
  • Modules: Compatible with all mk side rails and support, see System Modules page

Technical Specifications for Timing Belt Conveyor System

  • Constructed using our mk 2010 series structural profile
    • 100 mm tall anodized aluminum frame
    • Dual t-slots along the length of the frame, each side
      • T-slots along the length of the conveyor for ease of mounting stands, side rails, and custom accessories
    • Belt returns within the frame profile
      • This provides a safer design
      • A removable slot cover allows access to belt to cleaning and maintenance
  • UHMW-PE slider bed, 6 mm thick – guided for added belt tracking
  • Single lane and multi-lane set ups
  • Positively driven via a timing belt pulley – allows conveyor to operate in either direction
  • Maintenance free dual-sealed ball bearings
  • Compatible with all mk 50 system profiles and components and most mk 40 system profiles and components
  • Available in head and center-drive drive configurations

Product Options for Timing Belt Conveyor System

Conveyor Options Include:

  • Encoders
  • Specialty belt covers
  • Product escapements
  • Side tables and workstations
  • Drip pan and product catch pans
  • Custom motor and control options

Engineered Solution Options Include:

  • Cleated belts
  • Workpiece pallets
  • Ratcheting drives
