Sanitary Belt Conveyor

mk Part Number: CFB-200

Request a Quote

We're here to assist:
Call us at (860) 769-5500

Product Information for Sanitary Belt Conveyor

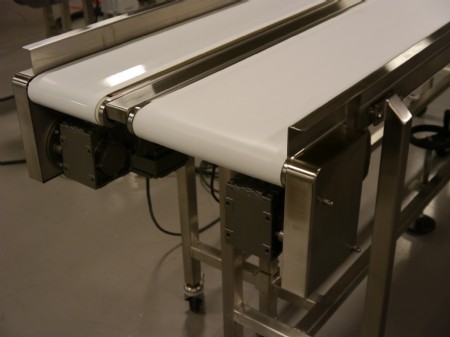

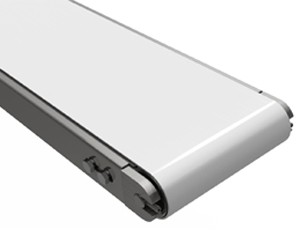

The CFB-200 is sanitary stainless steel belt conveyor. It is ideal for transporting packaged goods and features a low profile frame and pulleys with optional rolling nose bar.

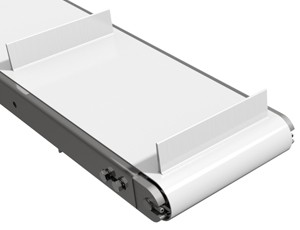

Also included in this product category are the CCB-200 which is a sanitary stainless steel belt conveyor and the CIC-200 which is an incline or z-frame conveyor of the same construction.

Conveyor Features:

  • Drive Pulley Diameter: 2 in.
  • Width: 2 to 36 in., in 2 in. increments
  • Length: up to 48 ft.
  • Load: Up to 450 lbs.
  • Speed: Up to 250 fpm; Constant or Variable speed options
  • Motors: Standard industrial motors
  • Belting: All FDA approved, in a variety of finishes and colors

Catalogs, Resources & Downloads for Sanitary Belt Conveyor

Technical Specifications for Sanitary Belt Conveyor

  • Constructed out of 304 stainless steel
    • Features a #4 finish on external surfaces
    • Bolted construction
  • All FDA approved belting
  • Belt width is 1 in. less than the frame width
  • Stainless steel maintenance free bearings
  • Crowned pulleys for easy belt tracking
    • Optional v-guided belts
    • NOTE: v-guides are standard in lengths over 30 ft.
  • Available in end and mid-mount drives
  • Optional rolling nosebar idler, on non-cleated belt conveyors
  • All conveyor lengths are per customer requirements

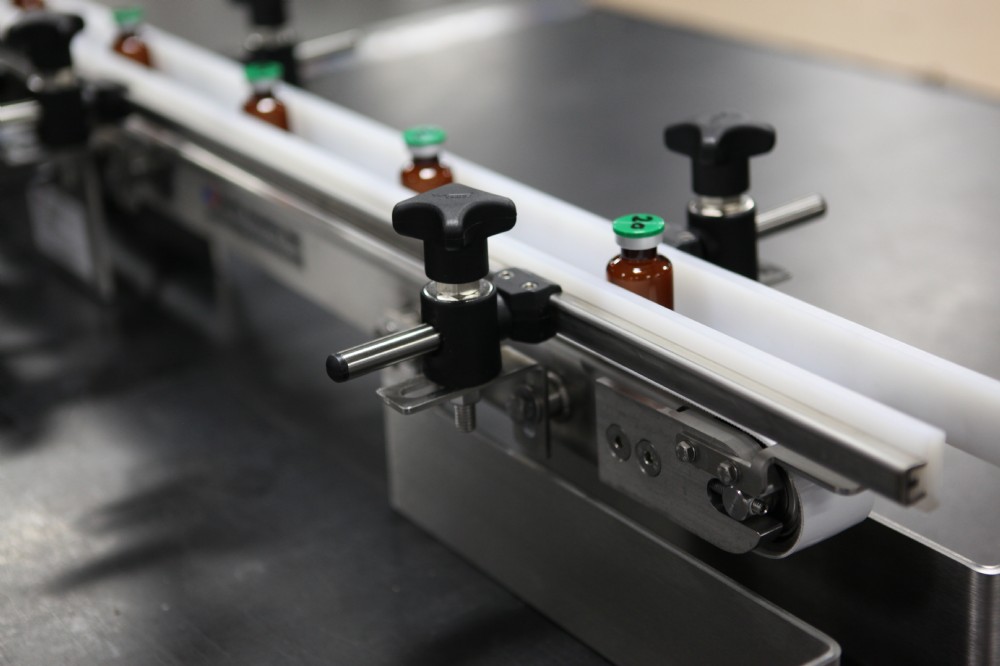

  • A large collection of accessories including side rails and stands
