Product Information for Recirculating Wide Pallet Conveyor System
The SPU 2040 recirculating pallet conveyor system is an excellent choice for material handling situations where two machines need to be linked via a third conveyor or lift system. Due to its accumulating capability, SPU 2040 pallet systems are particularly well suited for use in buffering areas that compensate for different cycle times upstream and down.

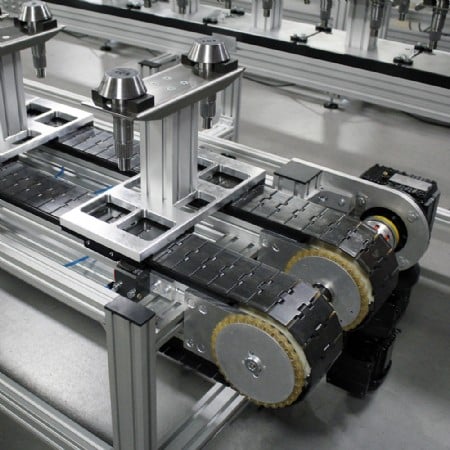

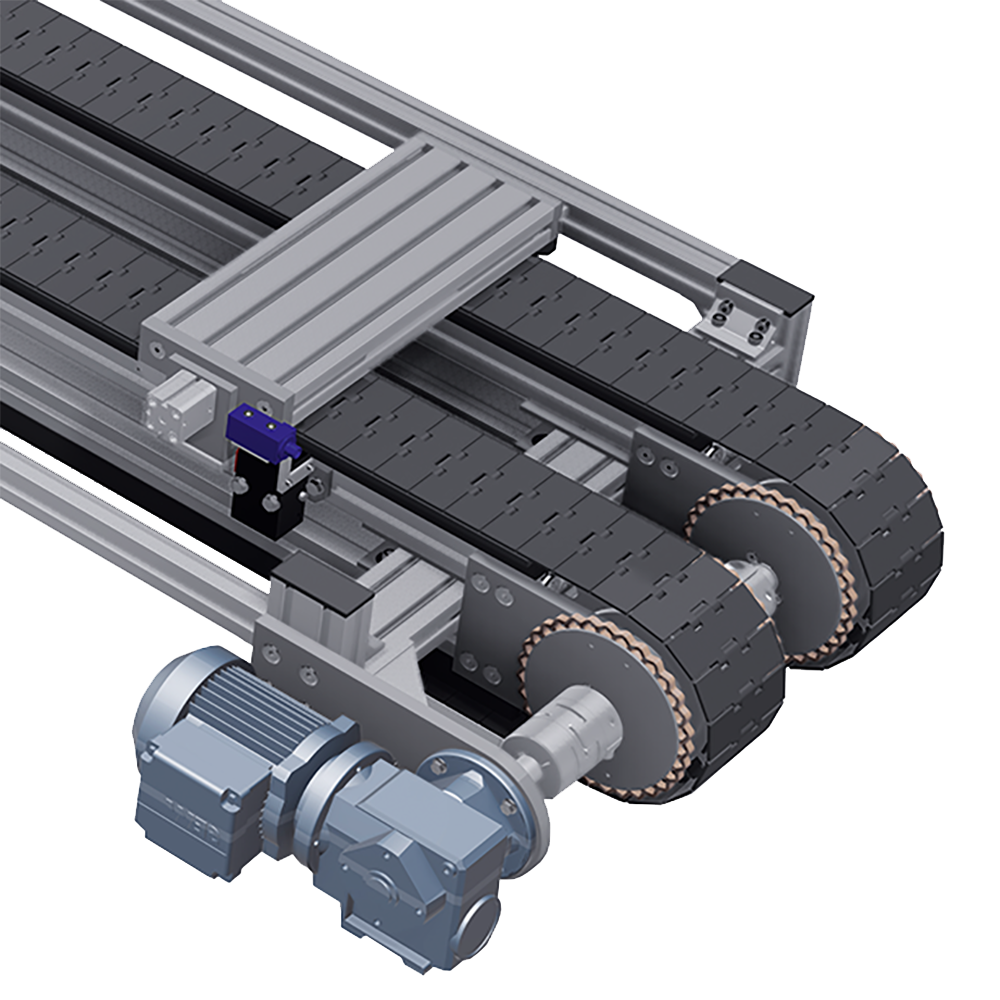

This wide pallet version of the SPU 2040 has a single pallet that straddles two conveyor lanes, there is one motor.
CONVEYOR FEATURES
- Pallet Widths: 410 mm to 2,000 mm
- Pallet Lengths: up to 350 mm
- Length: 2,000 mm to 10,000 mm
- Load: Up to 900 lbs.
- Speed: 15 to 50 fpm; Constant or Variable speed options
- Voltage: All standard US, Mexico and Canadian voltages
- Chain: Steel table top chain
- Accessories: See options tab
Catalogs, Resources & Downloads for Recirculating Wide Pallet Conveyor System
Technical Specifications for Recirculating Wide Pallet Conveyor System
DESIGN DETAILS
- Chain widths of 114 mm
- Constructed using our mk 40 series aluminum extrusions profiles:
- Twin t-slots along each side of the frame
- UHMW-PE wear surfaces
- Available in direct drive and bottom-mount drive configurations
- Two different types of idlers
- With manual tensioning
- With auto tensioning through a pneumatic cylinder
- Conveyor length is customizable per customer requirements, from 2 m to 10 m
- To prevent frame twist, strong, solid profile frame or ladder frame construction is available
- Compatible with all mk 40 series profiles and components and most mk 50 series profiles and components
- Stands, side rails, and accessories are easy to mount thanks to t-slots along the conveyor's length
- Large selection of structural hardware and other parts are available
- Large selection of conveyor accessories
Product Options for Recirculating Wide Pallet Conveyor System
Locating Device
Designed to locate and center the pallet on the conveyor. Includes all of the required components. Can include pallet separation or not. Positioning accuracy of ± 0.2 mm.
Stops and Separating Devices
Pneumatic devices provide for undamped stopping capabilities up to 880 lbs. (depending on application). Stops are mounted below the pallet. Separating devices can be mounted below on at the top of the pallet.
Protective Hood Enclosure
Protective guards at the return prevents unauthorized access OF THE PRODUCT during operation. This hood can be supplied with a pendulum flap, which when triggered stops the entire system.
Supports
Supports are constructed out of mk extruded aluminum and components and can be supplied with protective paneling. Available with leveling pads or on casters for a mobile conveyor option.
