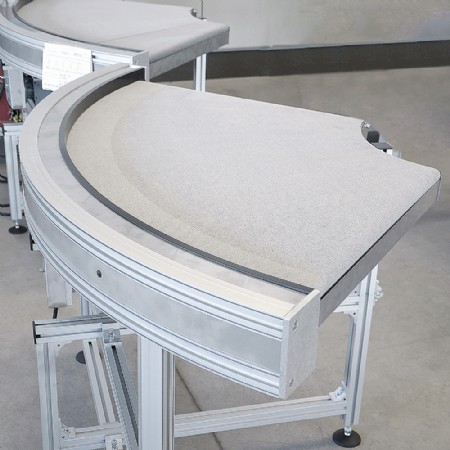

Curve Belt Conveyor

mk Part Number: KGF-P 2040

Request a Quote

We're here to assist:
Call us at (860) 769-5500

Product Information for Curve Belt Conveyor

The KGF-P 2040 curve belt conveyor system is constructed out of mk's profile and is compatible with all other mk conveyor systems. The compact construction and modular design of this curve belt conveyor simplifies the integration of the curve conveyor within existing lines. The curve belt conveyor features a 20 mm rolling nose bar which allows for the transfer of small parts. This bi-directional conveyor is ideal for maintaining the leading edge of the product.

mk KGF-P 2040 curve belt conveyors are useful for general manufacturing, packaging, automotive, and other applications requiring flexible production lines and a maximum use of floor space

Curve Belt Conveyor Features:

  • Belt Width: 300 mm, 400 mm, 500 mm and 600 mm usable widths
  • Radii Angle: 45°, 60°, 90° (standard), and 180°
  • Pulley Diameter: 20 mm on both ends of the curve
  • Load: Up to 75 lbs.
  • Speed: Up to 75 fpm
    • Constant or Variable speed options
  • Voltage: All standard US, Mexico and Canadian voltages
  • Belting: Smooth, anti-static, and food grade options, plus many more

Technical Specifications for Curve Belt Conveyor

  • Frame constructed using our 40 series structural profile
    • Dual t-slots on the outer radius of the curve
  • Stainless steel slider bed for complete belt support
  • Features a bi-directional center drive
  • Maintenance free dual-sealed ball bearings
  • Features a ø 20 mm rolling nose bar on each end – ideal for small part transfers
  • Tails feature automatic belt tensioning units
  • Compatible with all mk 40 series profiles and components and most mk 50 series profiles and components
  • Large selection of conveyor accessories – stands and side rails to name a few
