Hinges for Aluminum Framing

The variety of standard hinge arms allow combinations between the various profile series. A frame constructed using series 50 profiles, for example, can include a door built using 40 series profiles. Two or three-leaf hinges can be used, depending on whether tool-less removal of the door is to be an option or not. The three-leaf hinges features glide bushings whereby continuous actuation is possible, even under high loads.

Materials: Al tumbled, Zinc, Die-cast Zinc, Nylon, Plastic

Mounting Example 1 - Concealed Mounting      Mounting Example 2 - Surface Mounting

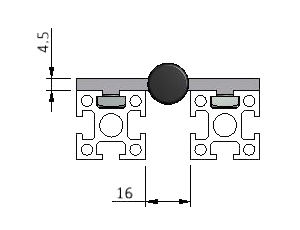

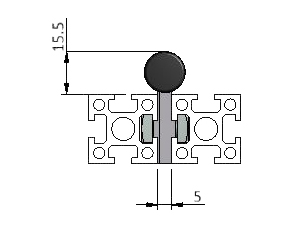

Diagram of Concealed Hinge Mounting for Aluminum Framing System         Diagram of Surface Hinge Mounting on T-Slot Aluminum Profiles
