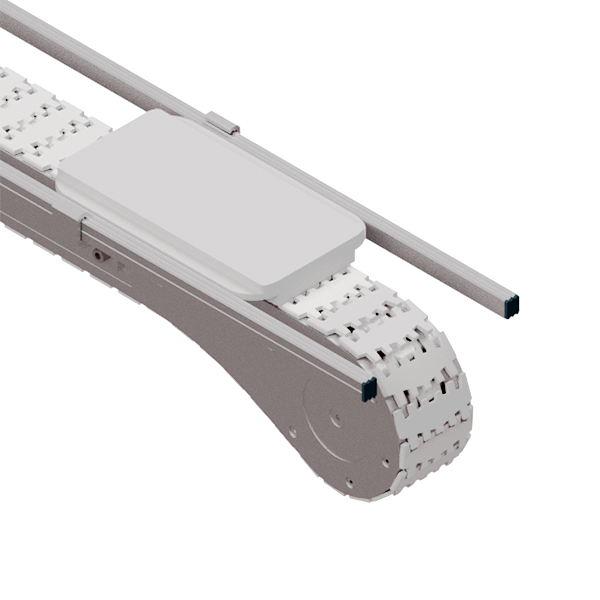

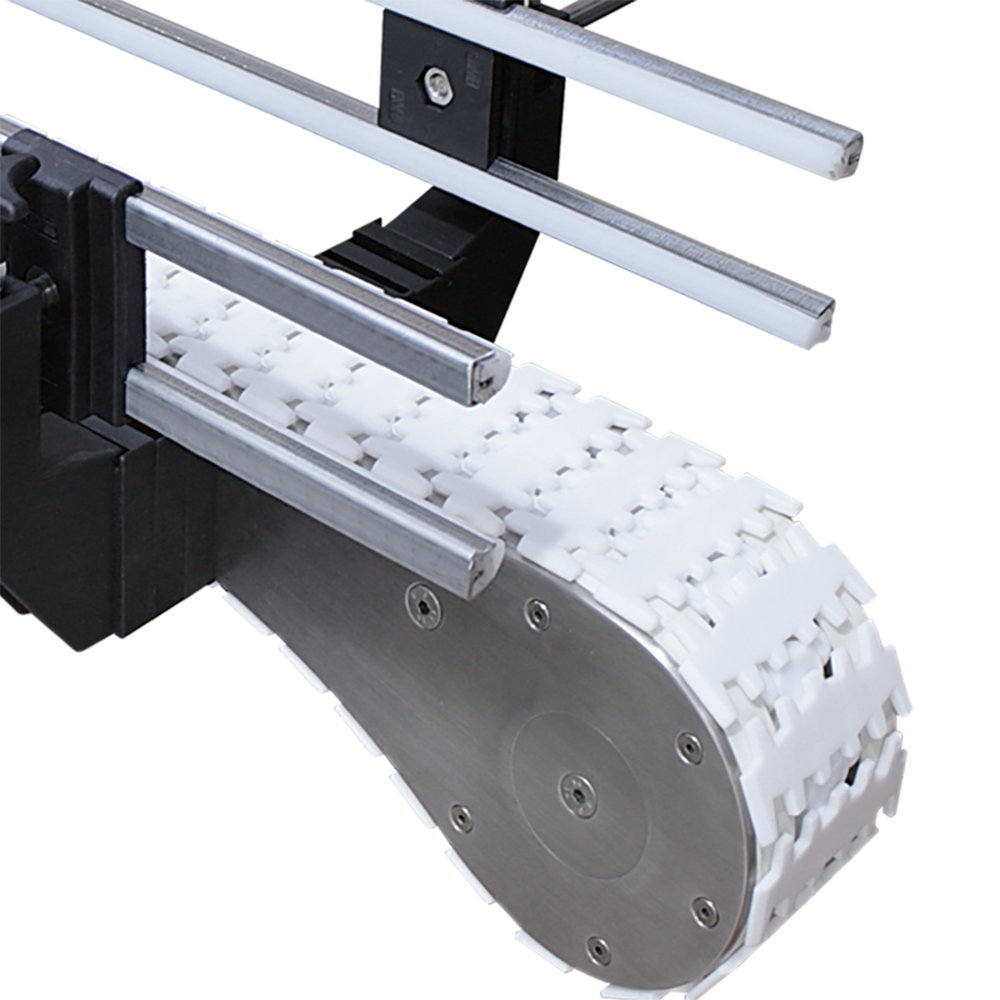

Flexible Chain Pallet-Handling Conveyor System

mk Part Number: VersaFlex P08

Request a Quote:

We're here to assist:
Call us at (860) 769-5500

Product Information

mk’s VersaFlex pallet-handling flexible chain conveyor systems are designed to improve manufacturing productivity while allowing for maximum layout flexibility. The pallets have a standard width of 150 mm and are guided by side rails.

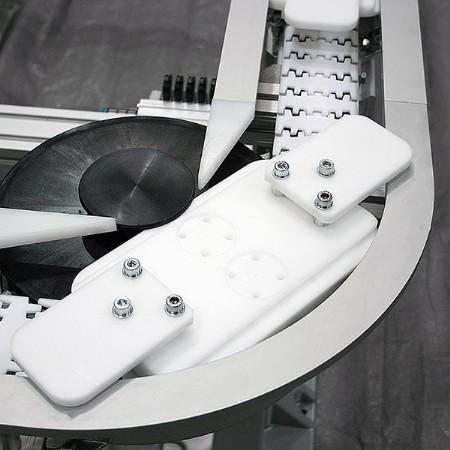

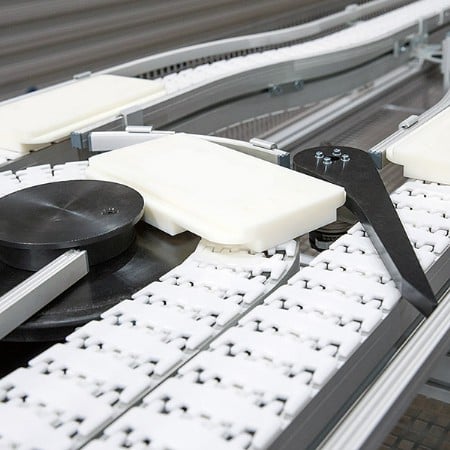

The pallets can be customized and equipped with individual fixtures in order to accommodate your unique part. This conveyor system has a repeat accuracy of ± 0.25 mm; when used with mk pallets and locating devices. Side transfers, corners and gates allow for the pallet to effortlessly travel around the facility and between various processes and stations.

Conveyor Features:

  • Frame Width: 85 mm
  • Chain Width: 83 mm
  • Pallet Width: 150 mm, custom upon request
    • Pallet Length: 150, 200 or 250 mm
  • Conveyor Length: up to 30 m
  • Load: Up to 22 lbs. per pallet
  • Speed: Up to 165 fpm; Constant or Variable speed options
  • Voltage: All standard US, Mexico and Canadian voltages

Catalogs, Resources & Downloads

Technical Specifications

Pallet Conveyor Features

  • Repeat accuracy of  ± 0.25 mm when used with mk's stops and locating devices
  • Cushioned and non-cushioned pallet stops
  • Pallet diverter features double acting pneumatic rotary drive
  • Pallet locating device includes necessary pallet stop

Flexible Chain Conveyor Features

  • Anodized aluminum frame
  • Features a double t-slot, see image below
  • Frame width is 85 mm
    • Chain width is 83 mm
  • Frame height is 85 mm
  • Chain pitch is 33.5 mm
  • Features a variety of drive options based on the conveyor layout.
Double t-slot
Double t-slot detail - located on both sides of the conveyor frame.

Product Options

Pallet-Handling Conveyor Modules

  • Pallet stops
  • Pallet locates
  • Pallet diverters
  • Pallets
