Flat Top Chain Conveyor

mk Part Number: CTF-400

Request a Quote

We're here to assist:
Call us at (860) 769-5500

Product Information for Flat Top Chain Conveyor

The CTF-400 is a sanitary stainless steel conveyor, featuring a flat top chain. This is a straight running conveyor and used primarily in the bottling and can industries, but can also convey non-protein and protein food stuffs.

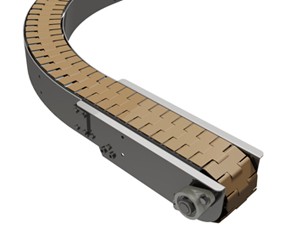

Also included in this series is the CRF-400 curved table top chain conveyors.

Conveyor Features:

  • Drive Pulley Diameter: 5.1 in
  • Width: For chain sizes; 3.25, 4.5, 6, 7.5, 10 and 12 in.
    • 6 in. chain is not valid on curve belt conveyors
  • Length: up to 60 ft.
  • Load: Up to 1,200 lbs.
  • Speed: Up to 150 fpm; Constant or Variable speed options
  • Motors: Epoxy painted washdown
  • Belting: All FDA approved, in a plastic and stainless steel

Catalogs, Resources & Downloads for Flat Top Chain Conveyor

Technical Specifications for Flat Top Chain Conveyor

  • Constructed out of 304 stainless steel
    • Features a #4 finish
    • Bolted, continuous non-pitted welded construction
    • ¼ to ½-in. standoffs, welded
  • All FDA approved chain
    • Stainless steel and acetal chain options
    • Acetal chain is only available for the 10 and 12 in. widths
  • Polymer bearings with stainless steel insert and FDA approved solid lubricant
  • Positively driven for easy belt tracking
  • Available in variety of end drive mounts
  • All conveyor lengths are per customer requirements
  • A large collection of accessories including side rails and stands
