Straight Modular Belt Conveyor

Product Information

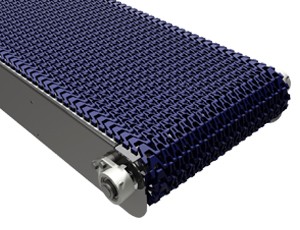

The CMP-400 is a versatile sanitary stainless steel conveyor, featuring a plastic modular belt. It includes an optional nose bar for small product transfer.

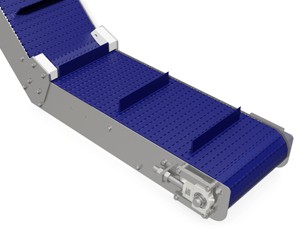

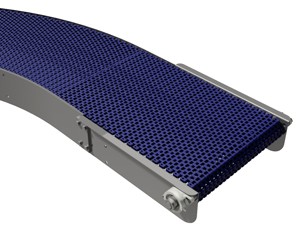

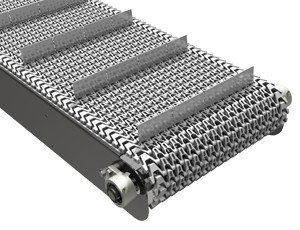

Other conveyors in this class include the CCM-400 which is a cleated plastic modular belt conveyor, the CIM-400 which is an incline conveyor and the CRM-400 which is a curved or radius belt conveyor.

All of the conveyors in this class are BISSC Certified.

Conveyor Features:

• Drive Pulley Diameter: 5.1 in
• Width: 4 to 48 in., in 2 in. increments
• Length: up to 60 ft.
• Load: Up to 1,000 lbs.
• Speed: Up to 250 fpm; Constant or Variable speed options
• Motors: Epoxy painted washdown
• Belting: All FDA approved, in a variety of finishes and colors

Catalogs, Resources & Downloads

• Brochure, CleanMove (8.6mb)

Technical Specifications

• Constructed out of 304 stainless steel
  • Features a #4 finish
  • Bolted, continuous non-pitted welded construction
  • ¼ to ½-in. standoffs, welded
• All FDA approved belting

  • A wide variety of belting is available
  • Belting can easily be removed via the pin and hinge design
• Polymer bearings with stainless steel insert and FDA approved solid lubricant
• Positively driven for easy belt tracking
• Available in a variety of end drives
• Optional rolling nosebar idler, for non cleated belt conveoyrs
• All conveyor lengths are per customer requirements
• A large collection of accessories including side rails and stands
