Attachments with Panel Clamps

Attachments with Panel Clamps
Door Component and Paneling, Paneling Fastener Option, Panel Clamp - Series 40 and 50, Installation

Options

Part Number:      Qty:

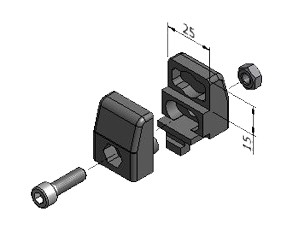

Panel Clamp, Series 40
Panel Clamp, Series 50

We're here to assist:
Call us at 860.769.5500 or
Contact Us Online ›

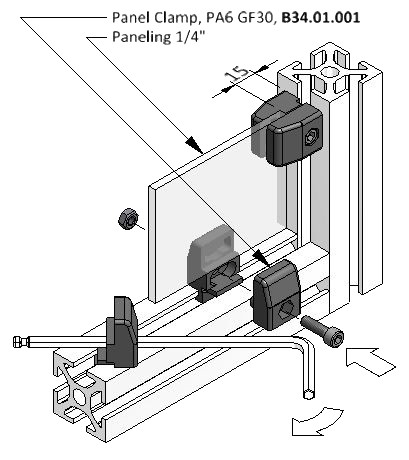

Panel clamps are installed after complete frame assembly. Recommended spacing is 500 mm.

Material: PA6 GF30

Features:

  • Easy installation using Allen wrench
  • Provides 15 mm gap to the frame
  • No machining required
  • Designed for 1/4" paneling
  • Panel is removable
