Curve Conveyors
Common Conveyor Uses:
- Assembly
- Bulky Products
- Complex Conveyor Layouts
- Packaging
- Piece Handling
- Sorting
- Transfers
mk curve conveyors are designed to complement any conveyor line. The KGF-P 2040 is designed as a stand-alone curve. Whereas the curve modules offered in our flat top chain conveyor lines, such as VersaFlex or the SBF-P 2000; are integrated into long straight running sections. Roller conveyor curves are ideal for large bulky products. Contact our sales team today to see which curve conveyor is best for your application.

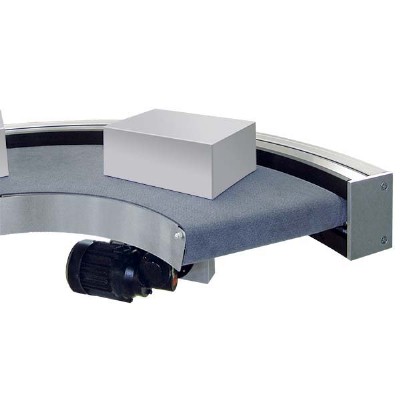

KGF-P 2040
Space saving design
- Max Width: 600 mm
- Load: Up to 75 lbs.
- Speed: Up to 75 fpm

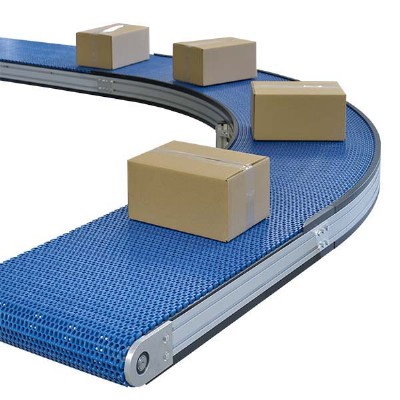

KMF-P 2040
For transporting around corners
- Max Width: 1,005 mm
- Load: Up to 330 lbs.
- Speed: Up to 100 fpm

VersaFlex A06
For products 15 to 140 mm wide.
- Chain Width: 63 mm
- Load: Up to 330 lbs.

VersaFlex A08
For products 20 to 200 mm wide.
- Chain Width: 83 mm
- Load: Up to 440 lbs.

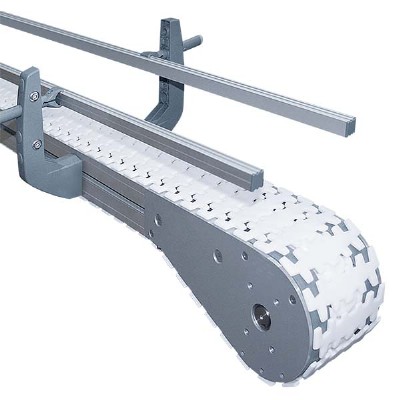

VersaFlex A10
For products 25 to 300 mm wide
- Chain Width: 103 mm
- Load: Up to 440 lbs.

VersaFlex A17
For products 25 to 300 mm wide.
- Chain Width: 175 mm
- Load: Up to 440 lbs

VersaFlex A29
For products 25 to 300 mm wide.
- Chain Width: 295 mm
- Load: Up to 440 lbs

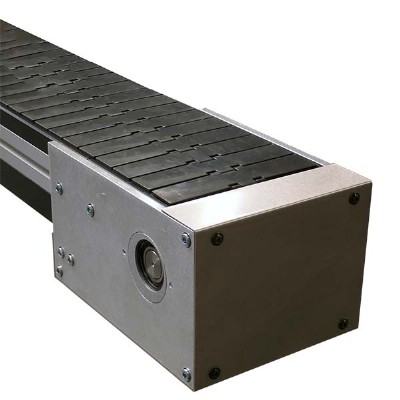

SBF-P 2000
Flat top chain conveyor for heavy loads
- Chain Width: Up to 305 mm
- Load: Up to 900 lbs.

SRT-P 2005
- Carousel style conveyor
- Designed to recirculate pallets or parts in a loop

RBM-P 2255
- Features motorized roller
- Driven with v-belts
- Loads: Up to 50 lbs./ft

RBT-P 2255
- Chain drive roller
- Straight and curve sections
- Loads: Up to 250 lbs./ft
Looking for a customized conveyor curve?
Contact us online or call (860) 769-5500. Our experienced sales staff will be happy to assist you.
