Low Profile Roller Chain Conveyor System
mk Part Number: KTF-P 2010
Request a Quote:
Product Information

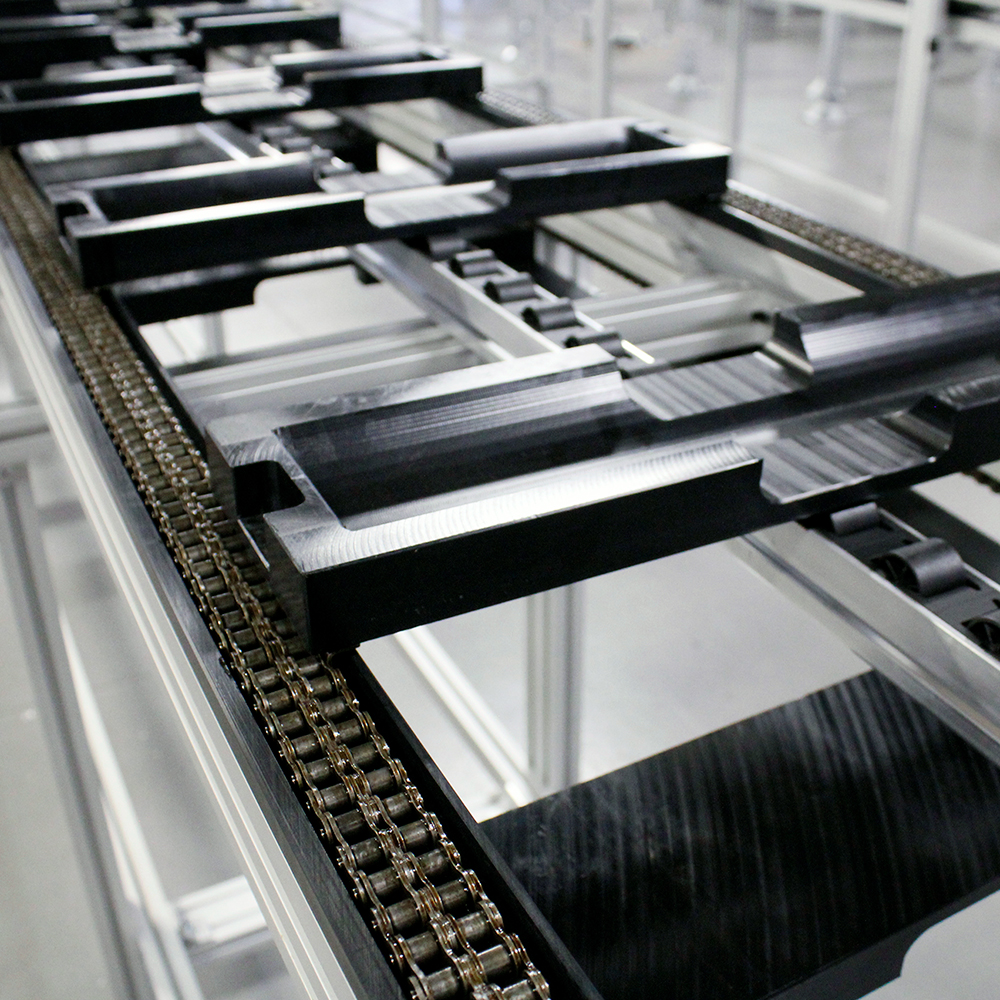

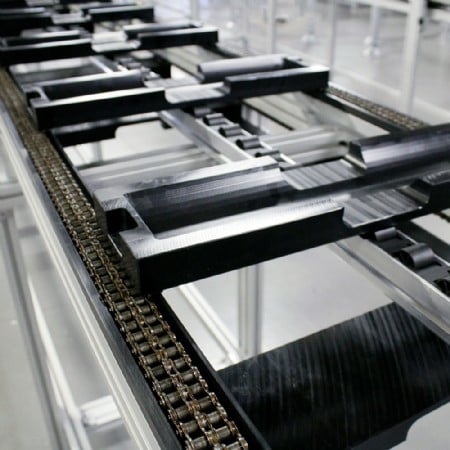

Roller chain conveyor KTF-P 2010 is a low profile conveyor that offers high load capacity over long runs.
This roller chain conveyor is bi-directional, making the KTF-P conveyor system an excellent choice for conveying solutions involving workpieces and other pallets, including those in the automotive, manufacturing, robotics industries (to name a few).
Features:
- Frame: 100 mm deep profile, 50 mm wide
- Pulley: 1/2" pitch, 22 tooth
- Width: Each lane is 50 mm wide, outside frame width is nearly unlimited, single or multiple lanes
- Length: 500 mm to 15,000 mm
- Load: Up 2,200 lbs.
- Speed: Up to 200 fpm
- Constant or Variable speed options
- Voltage: All standard US, Mexico and Canadian voltages
- Chain: 1/2" pitch chain, single or duplex
- Accessories: Compatible with all mk side rails and support
Catalogs, Resources & Downloads
Technical Specifications
- Constructed using our mk 2010 series profile
- 100 mm tall anodized aluminum frame
- Dual t-slot down the length of the frame, per side
- Bottom t-slot
- Our 2010 Profile allows for the chain to return within the frame
- Ability to mount conveyor directly on table top
- Safer design
- Compatible with all mk 50 system profiles and components and most mk 40 system profiles and components
- UHMW-PE chain track (wear strip), 5 mm thick
- Chain tracks are snapped on for easy replacement
- Single lane and multi-lane configurations
- Maintenance free dual-sealed ball bearings
- A removable t-slot cover allows for easy access to chain return
- Available in head and mid-drive configurations
- All conveyor lengths are per your requirements – no preset lengths to choose from
- Quick chain replacement
- Conveyor can operate in either direction – bi-directional
- Can be modified to accept an attachment chain
- Large selection of conveyor accessories – stands and side rails to name a few
Product Options
Conveyor Options Include:
- Covers
- Encoders
- Product escapements
- Drip pan and product catch pans
- Custom motor and control options
Engineered Solution Options Include:
- Custom chains
- Attachment chain
- Custom fixtures for attachment chain
