Closed Loop Conveyor

mk Part Number: Modul Con

Request a Quote

We're here to assist:
Call us at (860) 769-5500

Product Information for Closed Loop Conveyor

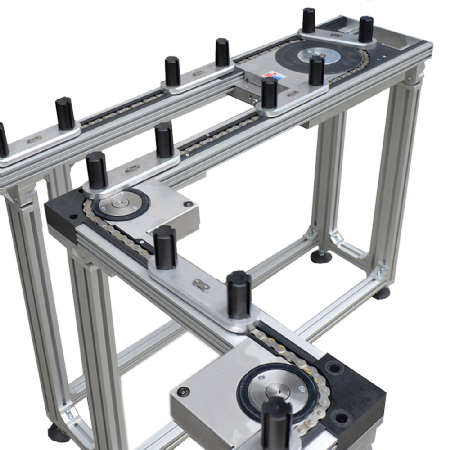

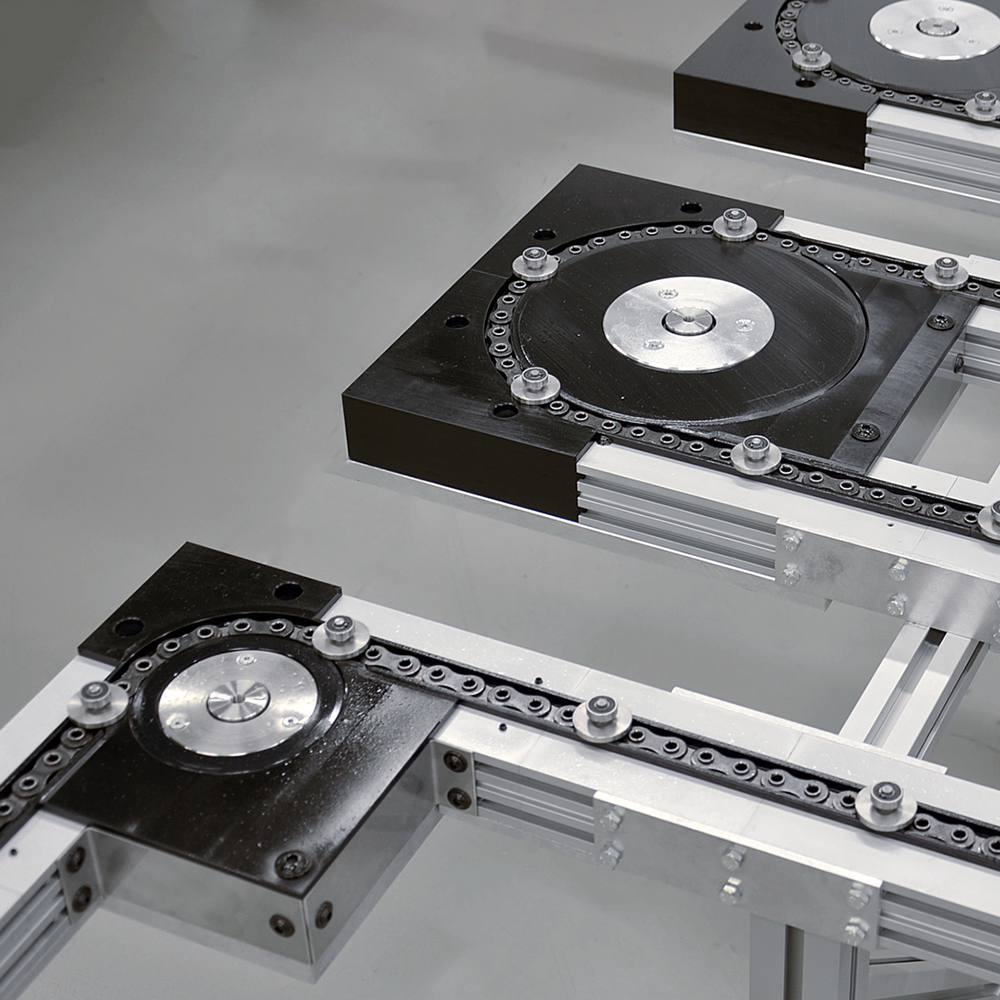

The Modul Con workpiece pallet conveyor system is designed to move pallets positioned at fixed distances from each other in a continuous loop. This is a closed loop system and can be configured as a single loop or with multiple 90° or 180° bends in it.

  • Radii Angle: 90°, and 180°
  • Pallet Spacing: per application, can be in increments of 1/2" or 3/4"
  • Pallets: Supplied and installed by mk or the customer
  • Pallet Size: Varies based on application
  • Voltage: All standard US, Mexico and Canadian voltages
  • Accessories: Compatible with all mk side rails and supports

Technical Specifications for Closed Loop Conveyor

  • Frame constructed with our structural aluminum extrusion
    • T-slots on each side of the frame of accessory mounting
  • UHMW-PE slider bed for complete belt support
  • Maintenance free dual-sealed ball bearings
  • A wide variety of curves and radii available
  • Hollow pin chain, typically 3/4" pitch
    • 1/2" and 1" pitch available as an option
  • Large selection of conveyor accessories – stands and pallets to name a few

Product Options for Closed Loop Conveyor

  • Covers
  • Encoders
  • Indexing motors and controls
  • Pallets and part fixtures
  • Side tables
  • Machine guarding
